API Box Connection — Swivel Range Reference

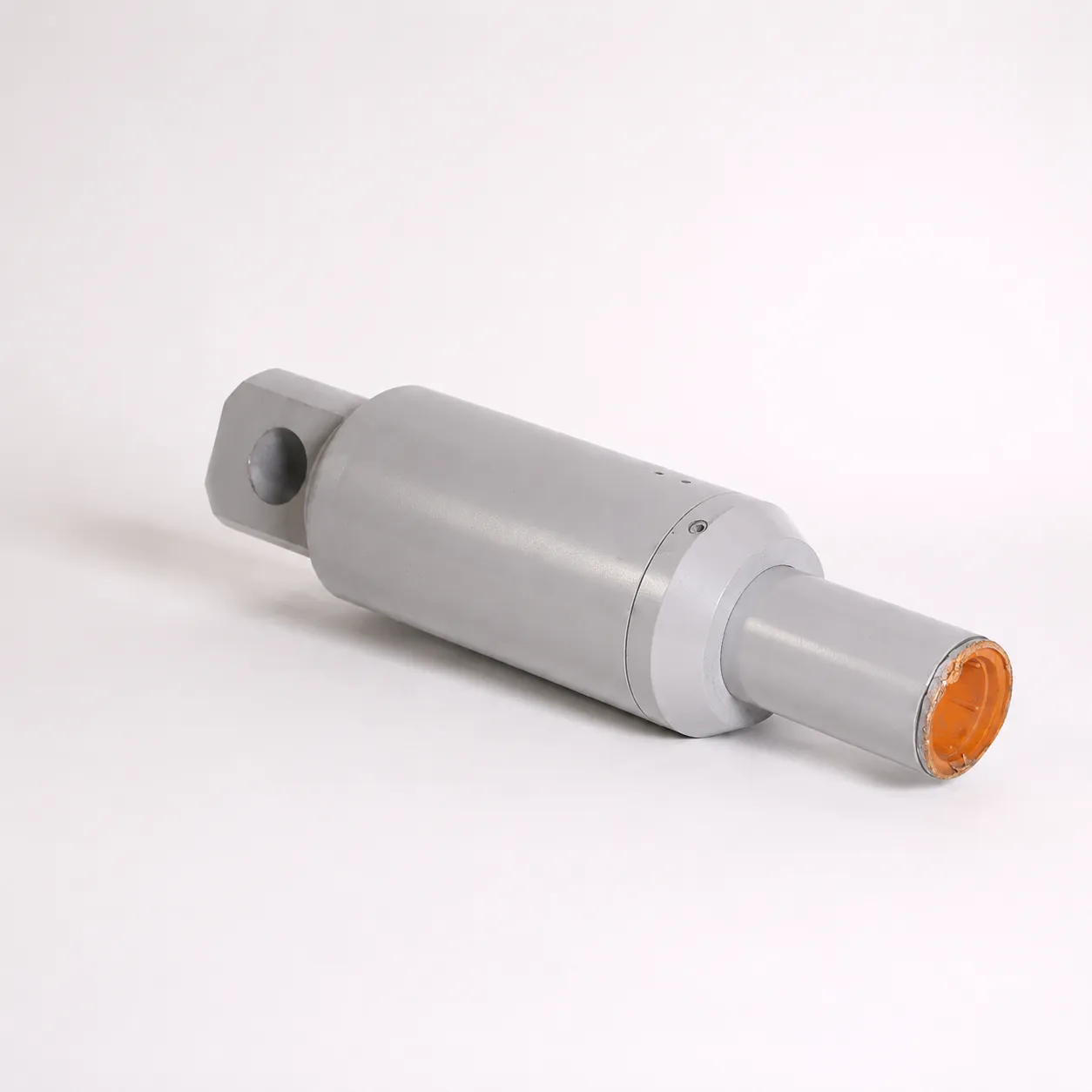

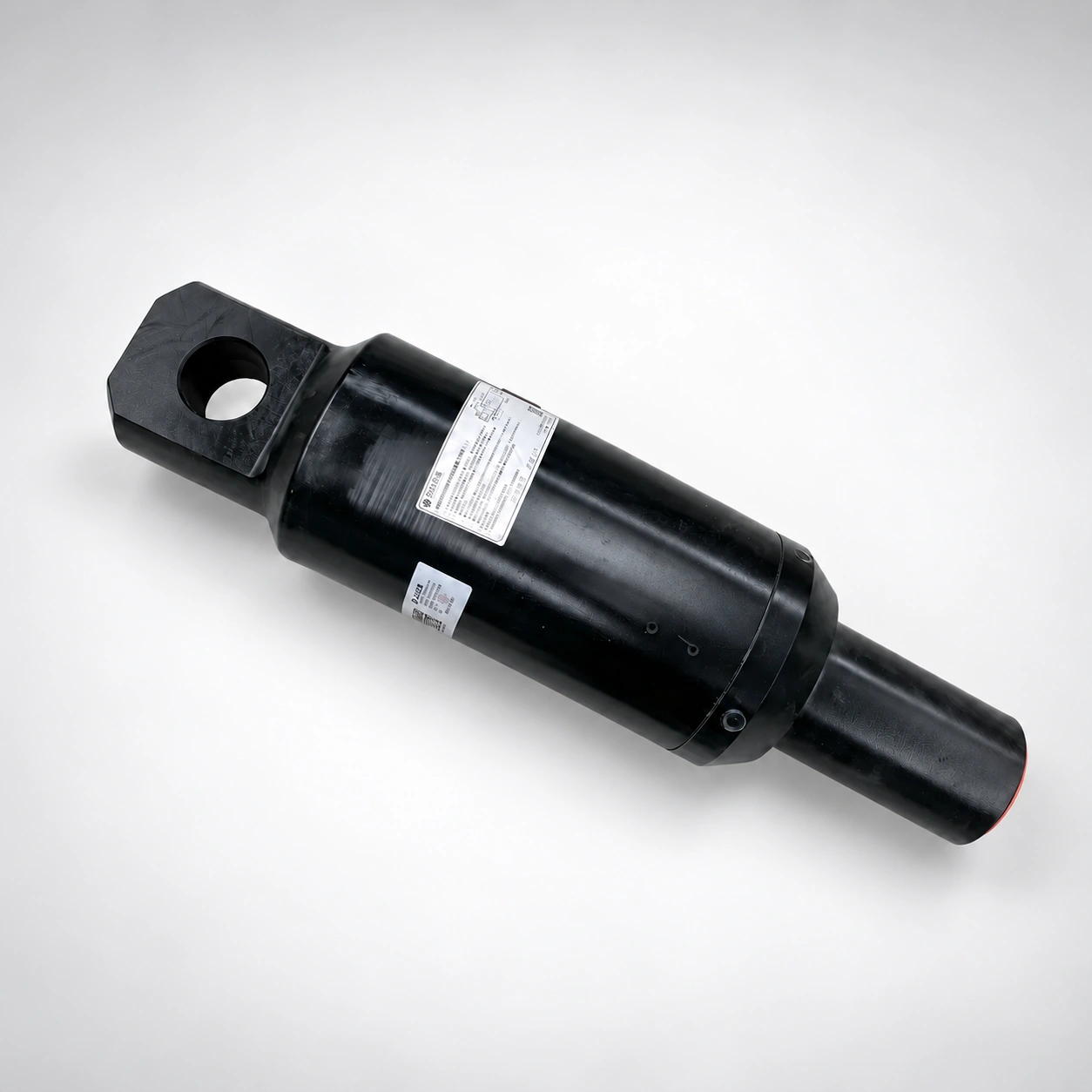

Our hard-wearing swivels range from 10 to 100 tons and are available in all clevis, pulling eye and threaded connection styles. Make sure to keep your swivels clean and greased, and never exceed the rated pullback capacity.
Specifications
| Size | OD (mm) | Length (mm) | Connection (example) | Part No. |
|---|---|---|---|---|
| 10T | 100 | 328 | Double Clevis | NS20601 |
| 20T | 128 | 420 | Double Clevis | NS20001 |
| 30T | 148 | 466 | Double Clevis | NS20036 |
| 40T | 165 | 551 | Double Clevis | NS20037 |
North Star recommends confirming the actual connection arrangement and application requirements before ordering.
Choose the Connection for the Job
Complete the HDD Tooling Setup
The product lineup includes end‑loading and side‑loading sonde housings, as well as drill‑head and pilot‑bit assemblies.
End-loading Housing
Side-loading Housing
Drill-head Connection Set
Eagle Claw Bit
Drill Head & Bits
Standard or Octagonal Connection
Specify Your HDD Connection With Confidence
API Box Connection Selection Guide
North Star API Box Connection. API box connection options for HDD swivel assemblies. Confirm thread designation, mating pin and assembly requirements.
Configuration and Application
An API box connection identifies the internal threaded connection. Confirm the exact thread designation and mating pin. The swivel range shown on this page is reference information; its rated capacities and dimensions must not be treated as universal API box connection dimensions.
API Box Thread Requirements
When selecting api box thread, provide the intended application, existing assembly details and the dimensions needed for the mating components. Include drawings, photographs or an existing part reference when available. Confirm the finished configuration with the quotation before ordering.
Related Tooling and Technical Background
Review Welded HDD Pipe and Reamers for related North Star tooling. For general background on directional drilling, see the directional drilling reference. Product-specific dimensions and compatibility remain subject to the selected configuration.
Request API Box Connection
Send the required configuration, quantity and drawings for a quotation. Identify the connections and dimensions that must match the existing equipment. Our team can review the supplied information and confirm the applicable options.
3 Essential Connection Checks
- Identify the thread: provide the exact designation shown on the drawing or existing component. A general reference to an API connection is not enough to establish a match.
- Confirm the mating pin: identify the component that will engage with the internal thread. Include its part reference and relevant drawing dimensions so both sides of the joint can be reviewed together.
- Review the complete assembly: confirm the connection arrangement and the rating of the selected swivel and attached tooling. The capacity of one component does not establish the allowable capacity of the whole assembly.
Information to Include with an Enquiry
Send the rig model, intended application, quantity and the dimensions that must match existing equipment. Include clear photographs of markings and an assembly drawing where available. If a dimension has been estimated rather than confirmed, identify it as an estimate and ask for review before the configuration is finalised.
Check the quoted connection designation against the supplied drawing. Keep the confirmed part reference and documentation with the project records for future replacement enquiries. If the proposed connection differs from the existing arrangement, request clarification before ordering rather than relying on a similar product name or overall appearance.
Using the Reference Table
The displayed table identifies selected swivel examples and their associated dimensions and part numbers. It is a range reference rather than a complete thread-dimension table. The listed double-clevis examples should not be interpreted as the dimensions of a threaded box. Request the applicable drawing for the specific connection and swivel configuration being supplied.
