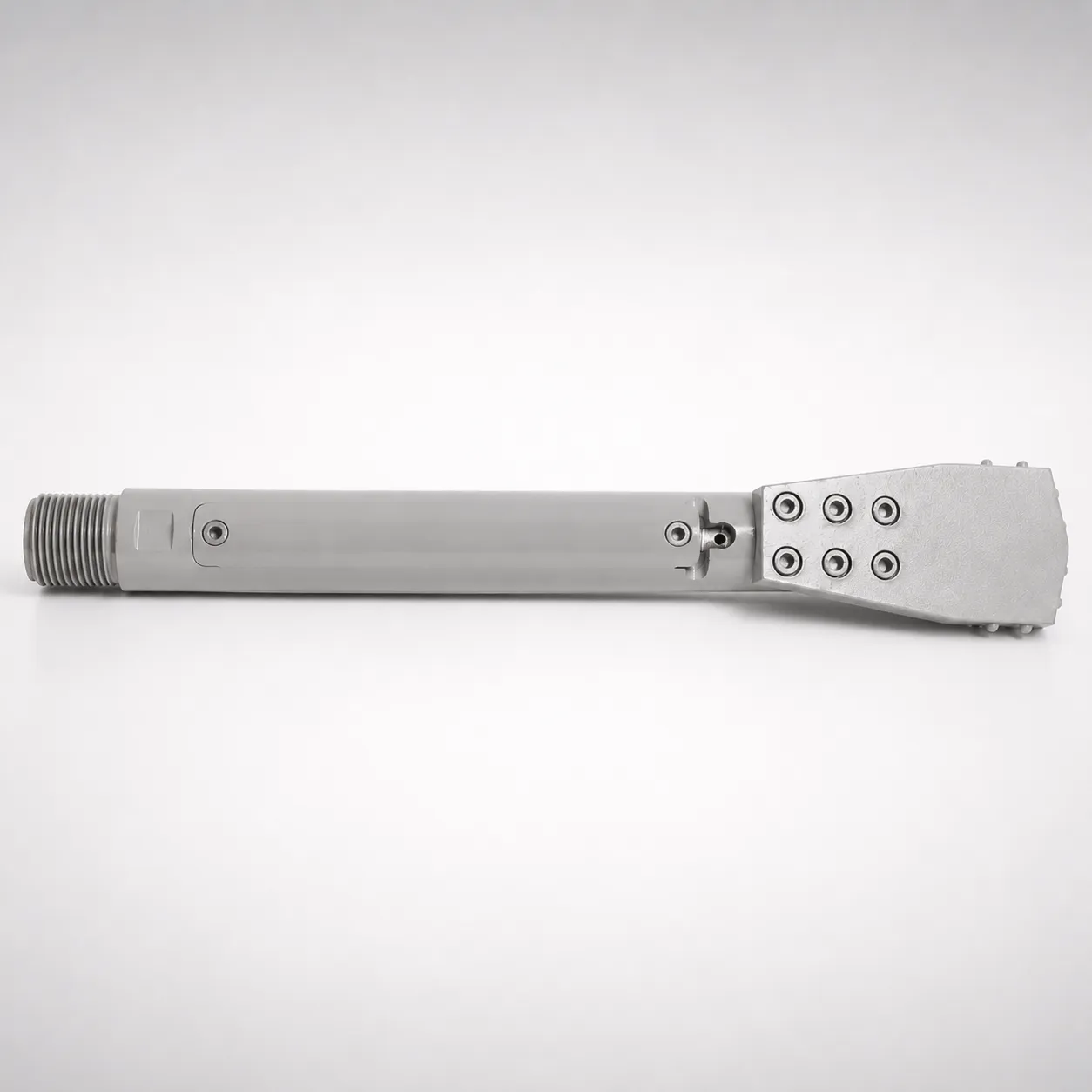

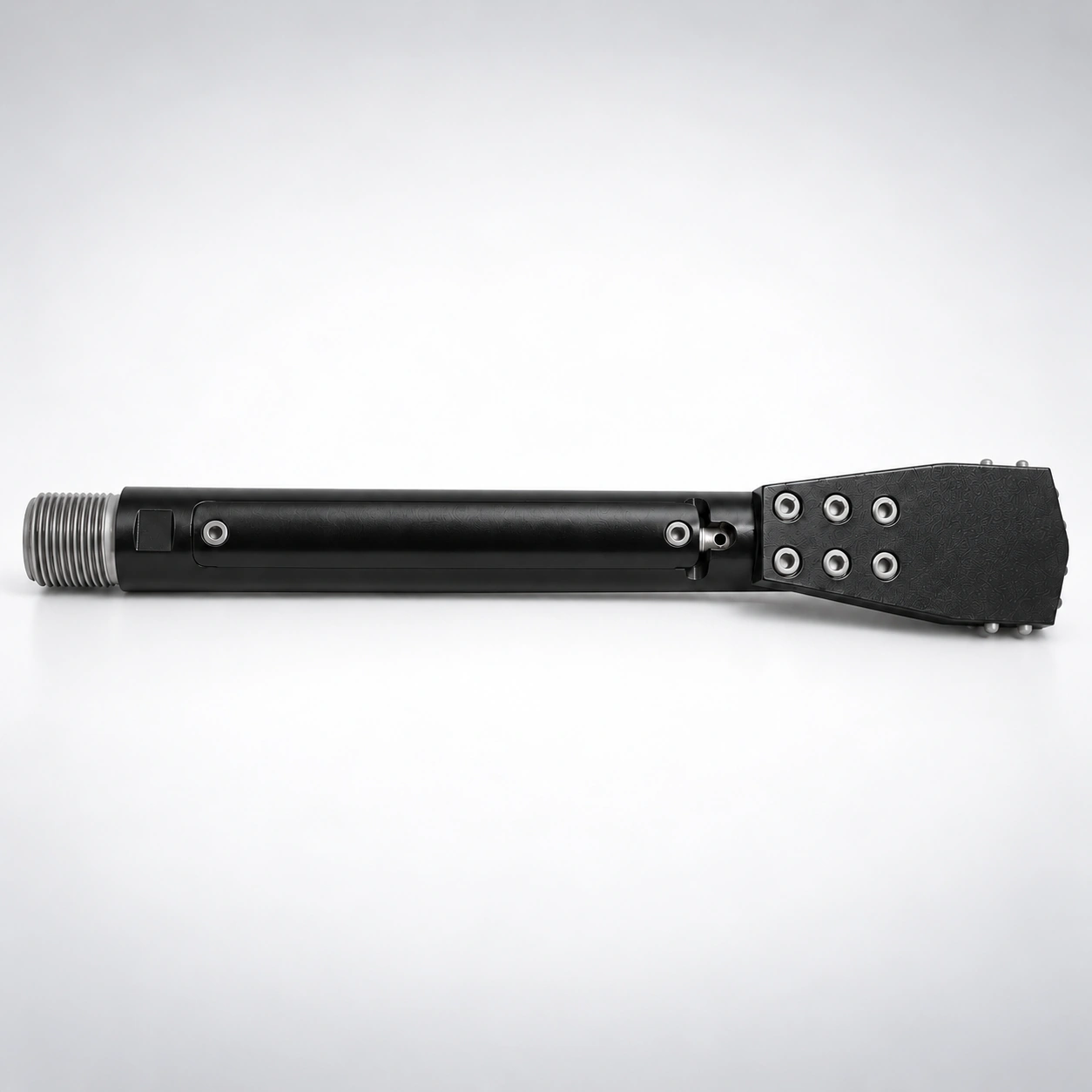

End-loading Housing Configuration
North Star End-loading Housing is part of the HDD housing range. Use the rows marked End in the reference table when reviewing this loading arrangement. The table also includes side-loading entries for comparison; those rows describe a different configuration.
3 Essential Checks for Better Fit
- Confirm the loading style and match the outside diameter and overall length to the selected End row.
- Identify the mating connection and bolt arrangement. These fields are listed as To Order and require configuration confirmation.
- Check the part number, intended application and any installation constraints against the quotation.
Send the intended application, mating connection details, required dimensions and quantity for review. Include a drawing or an existing part reference where available. Do not infer a connection or bolt pattern from the housing diameter alone.
Review the side-loading housing alternative and our HDD reamers. See directional drilling for general background.
Housing Range Specifications — Reference
| Pipe OD (mm) | Length (mm) | Loading Style | Connection | Bolt Configuration | Part No. |
|---|---|---|---|---|---|
| 60 | 585 | End | To Order | To Order | NS200002 |
| 60 | 790 | Side | To Order | To Order | NS200049 |
| 73 | 614 | End | To Order | To Order | NS200032 |
| 73 | 1006 | Side | To Order | To Order | NS200031 |
| 73 | 1056 | Side | To Order | To Order | NS200006 |
| 89 | 814 | End | To Order | To Order | NS200043 |
