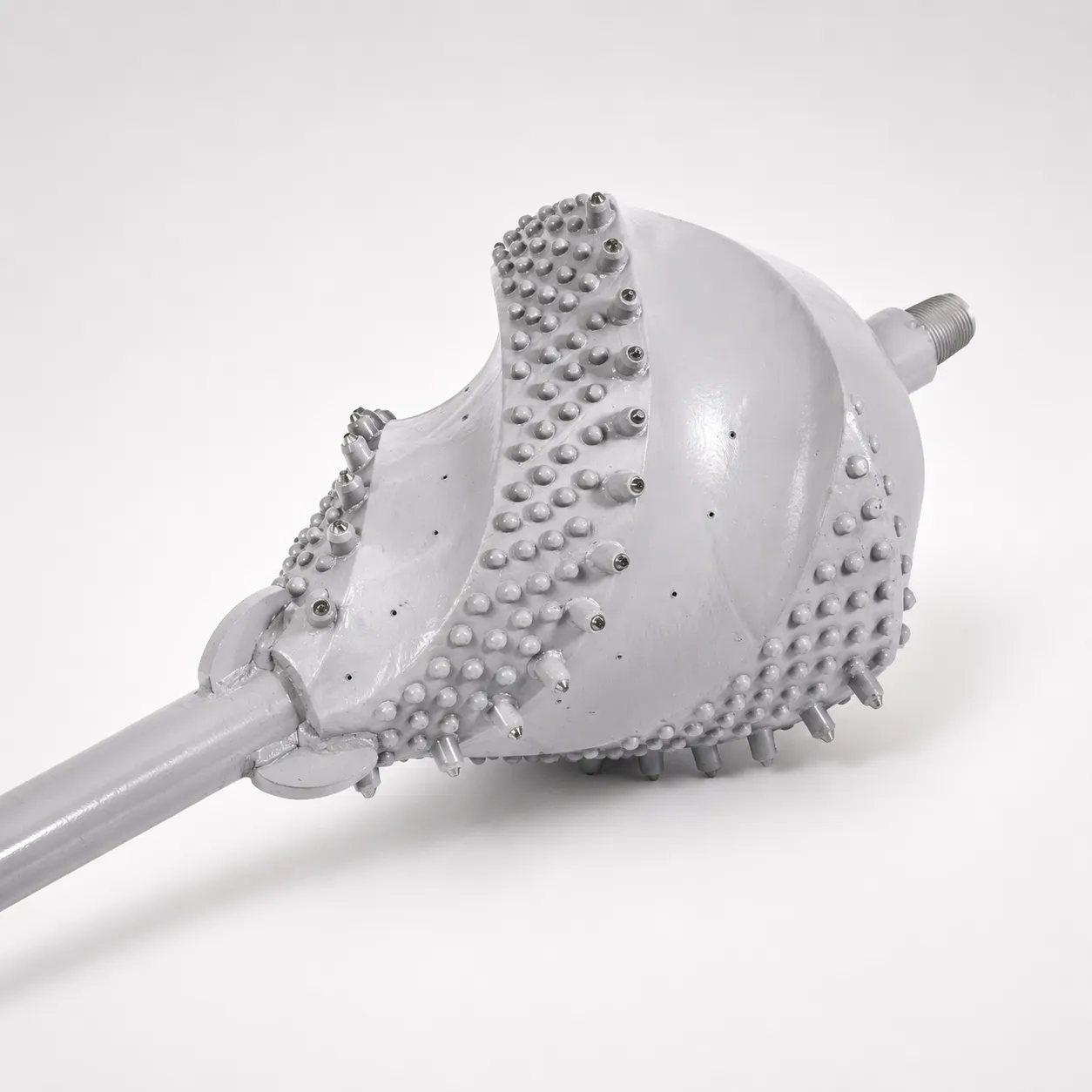

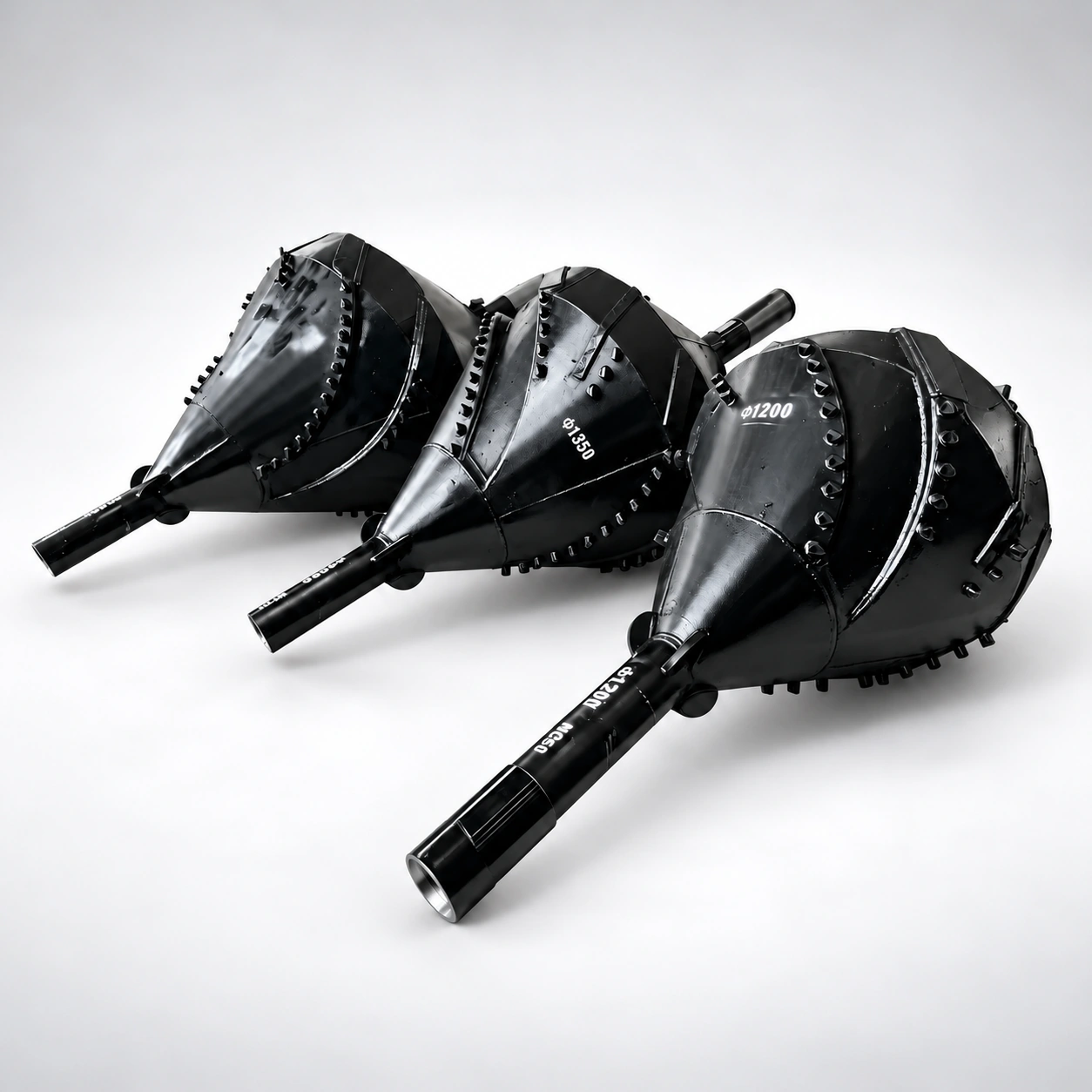

The Fluted Reamer features an integrally cast barrel body made of high-grade steel with large wall thickness and superior structural performance. Equipped with unique flute channels for smooth circulation of drilling mud and cuttings evacuation, it is engineered specifically for hard soil formations and delivers outstanding wear resistance.
During reaming, the fluted design enables efficient spoil removal and reduces operating drag, greatly boosting construction efficiency and extending tool service life.
Customisation is available to suit different construction scenarios, ground conditions and project requirements, delivering reliable reaming solutions for trenchless construction in hard soil layers.
Key Product Advantages
01 | Heavy-Wall One-Piece Cast Steel Body
The barrel is integrally cast from high-grade steel with ample wall thickness and high structural strength to withstand heavy loads during reaming in hard soil.
02 | Excellent Wear Resistance
Fitted with wear-resistant carbide inserts, it minimises wear under continuous hard-soil operation and extends tool service life.
03 | Smooth Cuttings Discharge via Flute Channels
The dedicated spiral flute design enables fast evacuation of drilling mud and cuttings, reduces soil buildup and torque, and stabilises reaming operation.
04 | High Efficiency for Hard Soil Construction
Optimised for hard soil formations, it features strong soil-breaking capacity and smooth spoil removal to improve penetration rate and shorten project timelines.
05 | Customisable for Site Conditions
Body dimension, carbide tooth configuration and connection threads can be customised according to ground hardness, target bore diameter and drilling rig parameters.
Fluted Reamer Selection for HDD Projects
A North Star Fluted Reamer should be selected against the formation and the drilling assembly. The stated application is hard soil. Provide ground information before assuming that a particular cutter or body configuration is suitable.
HDD Fluted Reamer Configuration Checklist
- Formation: describe the soil, any harder layers and the available ground investigation information.
- Diameter: provide the target bore diameter and proposed reaming stages for review.
- Cutters: confirm the carbide tooth arrangement and required cutter configuration.
- Flute channels: review the required passage for drilling mud and cuttings with the project team.
- Connection: identify the mating thread and any swivel or pullback connection.
- Order details: send the rig model, drawings, required quantity and existing part references.
Related Reamers and Drilling Tools
Compare the Barrel Reamer for its stated soft-ground applications, or review the full HDD reamer range. General background on directional drilling can help explain the project context.
Fluted Reamer Questions
Can a fluted reamer be selected by diameter alone? No. Ground conditions, cutter layout and the mating connection also need review.
Are custom configurations available? The product information supports custom body dimensions, cutter configuration and connection threads. Provide drawings and the intended application so the finished configuration can be confirmed with the quotation.
